AIR PURIFIER

Applications

Depth-loading filter cartridges of GTG EPA series are used for intake air filtration of gas turbines and turbo compressors at both onshore and offshore installations. They are particularly suitable for locations with high dust concentrations in the ambient air. GTG EPA filter cartridges are particular successful whenever the cleaning of surface filter cartridges does not produce any effective reduction in pressure drop, because the dust concentrations are too low and/or the dusts concerned are too sticky.

Features

• Innovative high strength synthetic EPA micro-glassfiber media with water repellent coating.
• Uniform pleat spacing for maximum dust holding capacity.
• The advanced filter medium offers efficiencies of class E 10 or E 12 level, low pressure drop and high cost efficiency.
• GTG EPA cartridges have been optimized in terms of filtering area, pleat depth and number of pleats which means the active filtering area remains completely effective over its entire operating lifetime.
• The pleat pack, plus the inner and outer support cages are cast into the steel-galvanized or stainless steel end caps in a leakproof configuration.
• To further enhance lifetimes a coalescer or prefilter wrapper may be fitted depending upon ambient air conditions.

Product Variant

Applications

Depth-loading filter cartridges of GTG series are used for intake air filtration of gas turbines and turbo compressors at both onshore and offshore installations. They are particularly suitable for locations with high dust concentrations in the ambient air. GTG filter cartridges are particular successful whenever the cleaning of surface filter cartridges does not produce any effective reduction in pressure drop, because the dust concentrations are too low and/or the dusts concerned are too sticky.

Features

• Innovative high strength synthetic micro-glass-fiber nonwoven with water repellent coating.
• Uniform pleat spacing for maximum dust holding capacity.
• The filter medium offers excellent initial efficiency, high dust holding capacity, low pressure drop and high cost efficiency.
• GTG cartridges have been optimized in terms of filtering area, pleat depth and number of pleats which means the active filtering area remains completely effective over its entire operating lifetime.
• The pleat pack, plus the inner and outer support cages are cast into the steel-galvanized or stainless steel end caps in a leakproof configuration.

Product Variant

Applications

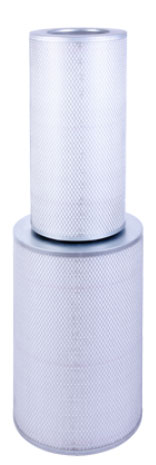

Pulse-jet filter cartridges of GTS double-cylindrical series are used for intake air filtration of gas turbines and turbo compressors at both onshore and offshore installations. They are particularly suitable for locations with critical on-site conditions like desert areas or tropical climates with high relative humidity.

Features

• GTS pulse-jet filter cartridges in double-cylindrical design, with their optimized self-cleaning characteristics, maximize useful lifetimes and minimize particle ingress in turbomachinery systems.
• High-strength synthetic microfiber nonwovens with water-repellent coating enable the GTS series to maintain excellent operational characteristics in all climatic duty conditions including high humidity locations.
• The double-cylindrical geometry in combination with flow-optimized spacing results in a particularly low pressure drop and very good cleanability via pulse-jet. This better pulse ability is a result of more open pleats compared to conical-cylindrical geometries.
• Innovative packaging of cartridge pairs reduces the transport volumes and packaging material. This makes an important contribution to sustainable environmental protection.
• To minimize corrosion and handling damage, the inner and outer support cage and base end caps are made from galvanized steel or stainless steel.

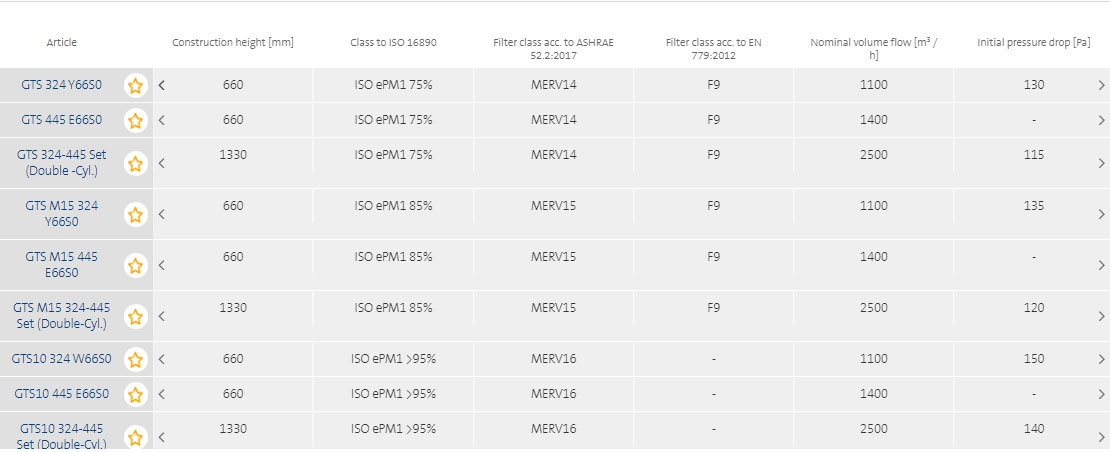

Product Variants

Applications

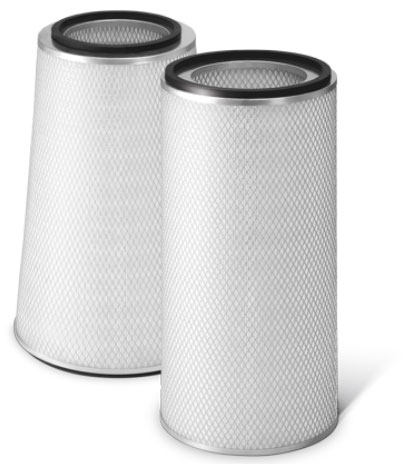

Pulse-jet filter cartridges of GTS conical-cylindrical series are used for intake air filtration of gas turbines and turbo compressors at both onshore and offshore installations. They are particularly suitable for locations with critical on-site conditions like desert areas or tropical climates with high relative humidity.

Features

• GTS conical-cylindrical pulse-jet filter cartridges, with their optimized self-cleaning characteristics, maximize the lifetimes of intake air systems for turbomachinery and reduce the operating costs significantly.
• Innovative high-strength synthetic microfiber nonwovens with water repellent coating enable the GTS series to maintain excellent operational characteristics in all climatic duty conditions including high humidity locations.
• The filter medium achieves high arrestance performance, large dust holding capacity, a low average pressure drop and high cost-efficiency.
• GTS filter cartridges have been optimized in terms of filtering area and pleat geometry. The active filtering area remains completely effective over its entire operating lifetime.
• To minimize corrosion, the inner and outer support cages, plus the cover and base, are made from galvanized steel or stainless steel. These components are cast in a leakproof configuration, so as to ensure maximized security against dust breakthrough during pulse-jet cleaning.

Product variants

Applications

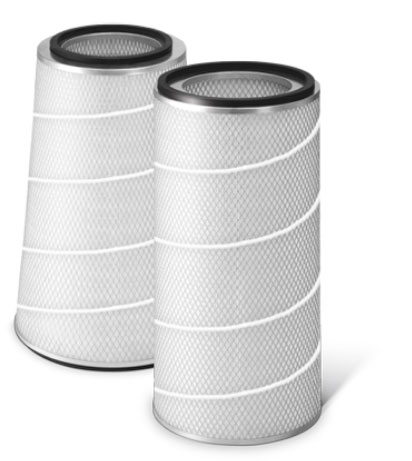

Pulse-jet filter cartridges of GTB series are used for intake air filtration of gas turbines and turbo compressors at both onshore and offshore installations.

They are particularly suitable for predominantly dry, arid locations with high dust concentrations in the ambient air.

Features

• High-strength blended micro-fiber nonwoven with water repellent coating that allows the cartridge to maintain excellent operational characteristics in most climatic conditions.
• The filter media, ensure high arrestance, high dust holding capacity (prior to self-cleaning), low average pressure drop and high cost efficiency.
• GTB cartridges have been optimized in terms of filtering area, pleat depth and number of pleats which means the active filtering area remains completely effective over its entire operating lifetime.
• To minimize corrosion and handling damage, the inner and outer support cages and end base end caps are made of galvanized steel or stainless steel. All components are cast together to ensure leak-proof operation as well as high security against dust penetration during pulse operation.

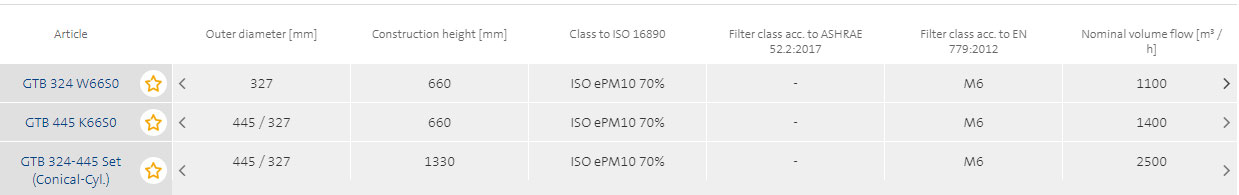

Product Variants

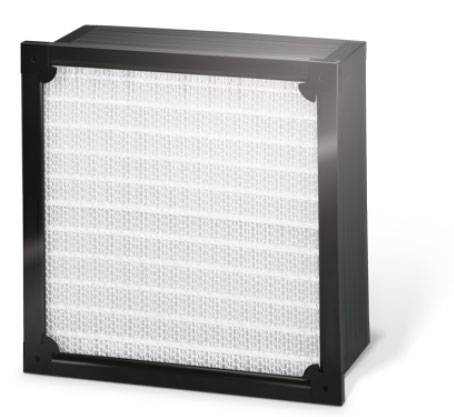

Applications

Viledon MaxiPleat cassette filters offer maximized operational reliability and cost-efficiency for supply, exhaust and recirculated air filtration in ventilation systems, e.g.

• in intake air filtration for gas turbines and compressors
• in industrial processes (chemicals, pharmaceuticals, foods and beverages, optics, electronics, surface treatment, etc.)
• in sophisticated air-conditioning applications (laboratories, libraries, museums, airports, office buildings, etc.)
• as policing filters in dust removal applications.

Features

• High-strength micro-glassfiber papers with a special thermoplastic bonding system and hydrophobic coating are used as filter media.
• Our patented thermal embossing process, with its optimum V-shaped pleat geometry, ensures full utilization of the filtering area and uniform dust deposition.
• The low average pressure drop, i.e. a very slow increase in the pressure drop, ensures a long useful lifetime, with cost-efficient and reliable operation.
• The leak-proof casting of the dimensionally stable pleat pack in the distortion-resistant plastic frame results in outstanding bursting strength as well as high security against dust penetration.

Product Variants

Applications

Viledon MaxiPleat cassette filters offer maximized operational reliability and cost-efficiency for supply, exhaust and recirculated air filtration in ventilation systems, e.g.

• in intake air filtration for gas turbines and compressors
• in industrial processes (chemicals, pharmaceuticals, foods and beverages, optics, electronics, surface treatment, etc.)
• in sophisticated air-conditioning applications (laboratories, libraries, museums, airports, office buildings, etc.)
• as policing filters in dust removal applications.

Features

• High-strength micro-glassfiber papers with a special thermoplastic bonding system and hydrophobic coating are used as filter media.
• Our patented thermal embossing process, with its optimum V-shaped pleat geometry, ensures full utilization of the filtering area and uniform dust deposition.
• The low average pressure drop, i.e. a very slow increase in the pressure drop, ensures a long useful lifetime, with cost-efficient and reliable operation.
• The leak-proof casting of the dimensionally stable pleat pack in the distortion-resistant plastic frame results in outstanding bursting strength as well as high security against dust penetration.

Product variants

Applications

Viledon MaxiPleat cassette filters offer maximized operational reliability and cost-efficiency for supply, exhaust and recirculated air filtration in ventilation systems, e.g.

• in intake air filtration for gas turbines and compressors
• in industrial processes (chemicals, pharmaceuticals, foods and beverages, optics, electronics, surface treatment, etc.)
• in sophisticated air-conditioning applications (laboratories, libraries, museums, airports, office buildings, etc.)
• as policing filters in dust removal applications.

Features

• High-strength micro-glassfiber papers with a special thermoplastic bonding system and hydrophobic coating are used as filter media.
• Our patented thermal embossing process, with its optimum V-shaped pleat geometry, ensures full utilization of the filtering area and uniform dust deposition.
• The low average pressure drop, i.e. a very slow increase in the pressure drop, ensures a long useful lifetime, with cost-efficient and reliable operation.
• The leak-proof casting of the dimensionally stable pleat pack in the distortion-resistant plastic frame results in outstanding bursting strength as well as high security against dust penetration.

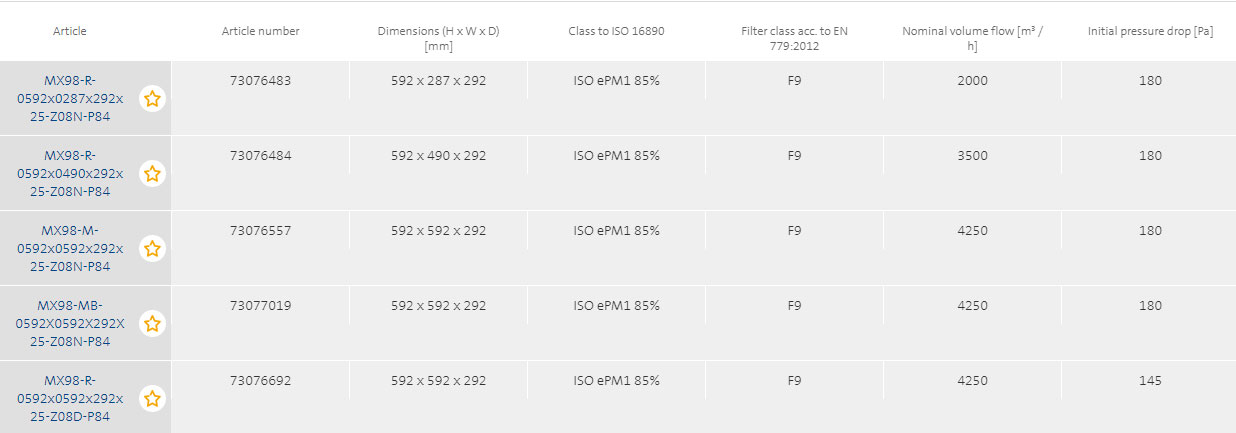

Product Variants

Applications

Viledon MaxiPleat cassette filters offer maximized operational reliability and cost-efficiency for supply, exhaust and recirculated air filtration in ventilation systems, e.g.

• in intake air filtration for gas turbines and compressors
• in industrial processes (chemicals, pharmaceuticals, foods and beverages, optics, electronics, surface treatment, etc.)
• in sophisticated air-conditioning applications (laboratories, libraries, museums, airports, office buildings, etc.)
• as policing filters in dust removal applications

Features

• High-strength micro-glassfiber papers with a special thermoplastic bonding system and hydrophobic coating are used as filter media.
• Our patented thermal embossing process, with its optimum V-shaped pleat geometry, ensures full utilization of the filtering area and uniform dust deposition.
• The low average pressure drop, i.e. a very slow increase in the pressure drop, ensures a long useful lifetime, with cost-efficient and reliable operation.
• The leak-proof casting of the dimensionally stable pleat pack in the distortion-resistant plastic frame results in outstanding bursting strength as well as high security against dust penetration.

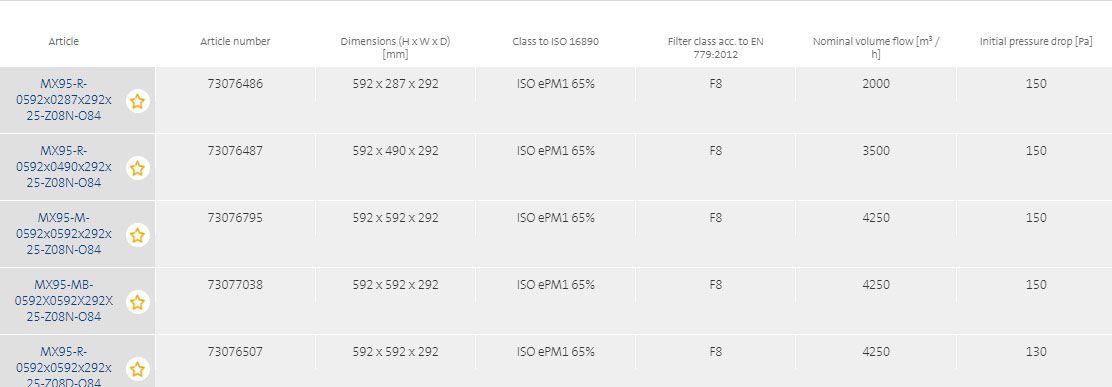

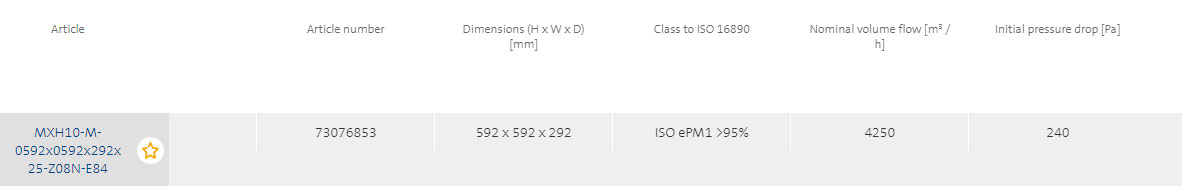

Product variants

Applications

Viledon MaxiPleat cassette filters offer maximized operational reliability and cost-efficiency for supply, exhaust and recirculated air filtration in ventilation systems, e.g.

• in intake air filtration for gas turbines and compressors
• in industrial processes (chemicals, pharmaceuticals, foods and beverages, optics, electronics, surface treatment, etc.)
• in sophisticated air-conditioning applications (laboratories, libraries, museums, airports, office buildings, etc.)
• as policing filters in dust removal applications

Features

• High-strength micro-glassfiber papers with a special thermoplastic bonding system and hydrophobic coating are used as filter media.
• Our patented thermal embossing process, with its optimum V-shaped pleat geometry, ensures full utilization of the filtering area and uniform dust deposition.
• The low average pressure drop, i.e. a very slow increase in the pressure drop, ensures a long useful lifetime, with cost-efficient and reliable operation.
• The leak-proof casting of the dimensionally stable pleat pack in the distortion-resistant plastic frame results in outstanding bursting strength as well as high security against dust penetration.

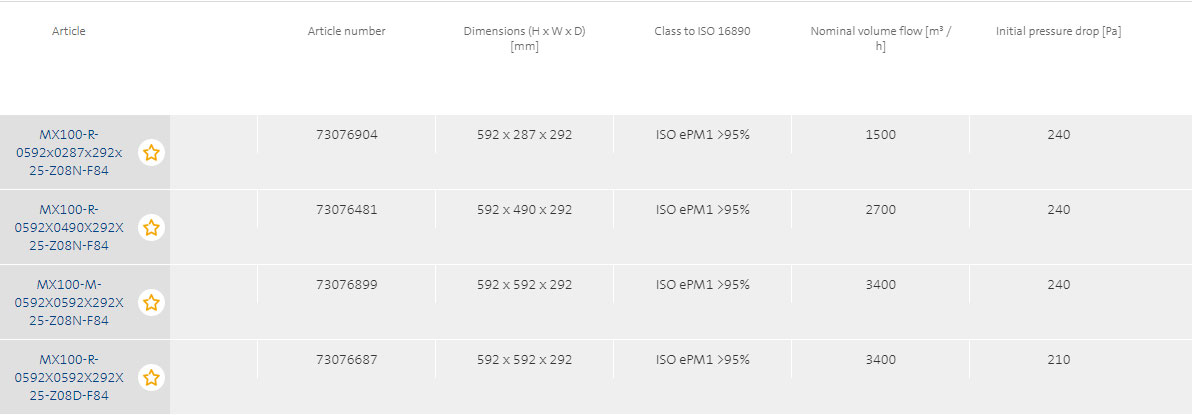

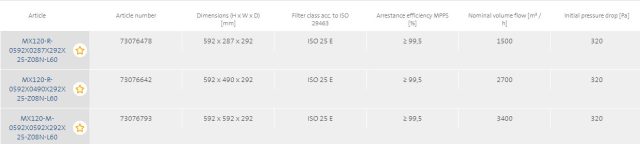

Product variants
