Filters For Gas Turbine

Application

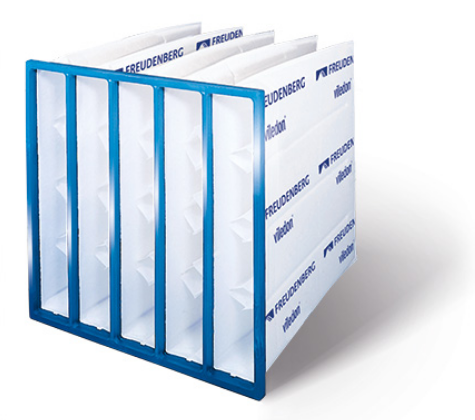

Viledon hydroMaxx reverse pocket filters are the next generation of coalescer filters following the field-proven F 45 R pocket filter range. Offering high operational reliability and cost-efficiency they are ideally suited for intake air prefiltration at coastal, offshore and other high humidity locations of

• gas turbines in power generation and in the oil and gas industry
• compressors
• diesel and gas engines

Here they provide optimum protection of the following filter stages for keeping them dry.

Feature

hydroMaxx pocket filters offer four main benefits in one filtration concept.

1. The reverse media’s hydrophobic, progressive nonwoven composition functions as a reliable coalescer for water droplets and high humidity.
   This feature enables the water droplets to combine and drain down from the vertical pockets.Thus salt and hydrocarbon ingress will be substantially reduced.
2. Superior dust handling. Thanks to the reverse media concept, dust is not readily stored as in a traditional pocket filter. The hydroMaxx utilizes a self-supporting, integrated plastic cage system to optimize performance. Therefore the draining water washes off the dust captured on the filter media.
3. Maximized functional reliability thanks to the leak-proof welded edge configuration of the filter pockets, foam-sealed into a PUR front frame, and dimensionally stable construction of the filter element as a whole.
4. Various 2-in-1 filtration system solutions based on the unique modular clip-on system. This design allows close coupling to either the intermediate or the final filter without any structural modifications. Learn more about the various clip-on combinations in a video.

Application

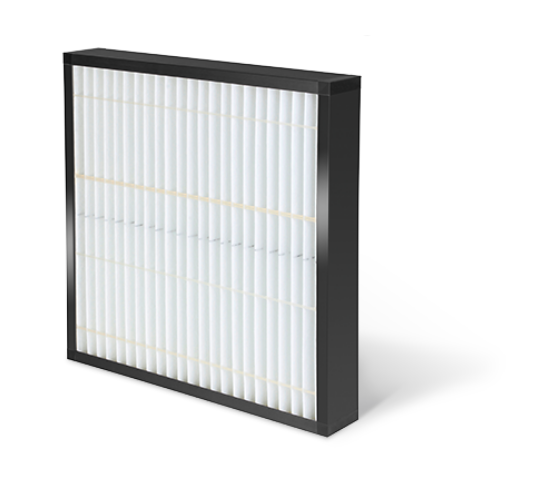

hydroPack MP 45 KTC-W filter cells are used for intake air filtration of

• gas turbines in power generation and in the oil and gas industry
• compressors and diesel and gas engines.

Here they extend the useful lifetimes of the downstream high-performance filters.

Features

• Thanks to coalescing properties ideally suited for applications where filters are exposed to constant waterspray or fogging.
• hydroPack MP 45 KTC-W Filters are fully-potted resulting in a leak-free construction.
• A water barrier at the bottom of the filters back side reduces intaken water from reaching the clean-air side. This ensures enhanced prefilter lifetime and protection of the downstream filter stage.
• The entire filter element is metal-free and thus non-corroding and fully incinerable.

Applications

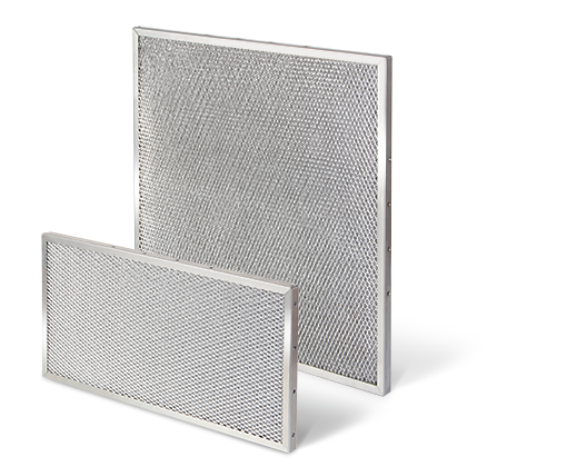

hydroMesh coalescer filters apply for moisture separation at locations with temporary peaks in humidity used in intake air filtration systems of

• gas turbines for power generation and in the oil and gas industry
• compressors

Features

Applications

Viledon Compact pocket filters F 40 and F 45 are used for supply, exhaust and recirculating air filtration in all kinds of ventilation systems, such as:

• in general air-conditioning applications
• for ventilating machine rooms and production areas
• for exhaust and recirculating air filtration in paint lines
• as prefilters for fine and micro-filters in industrial processes (metal processing, chemicals, pharmaceuticals, food and beverages, optics, electronics, etc.),
• in ventilation and air conditioning technology, in paint lines /paint spray booths and for gas turbines and compressors.

Features

• As filter media, we use our progressively structured high-performance nonwovens made in-house from tear-resistant synthetic organic fibers.
• High separation capacity with low pressure drop, long service life and excellent cost-efficiency.
• Maximized functional reliability thanks to the leak-proof welded configuration of the filter pockets, foamed-in polyurethane front frame.
• Thanks to their shorter pockets, F 45 S filters offer a space-saving solution for plants where the use of long-pocket filters would not be possible.
• F 45 R pocket filters with reversed filter media and hydrophobic finish offer excellent coalescing properties with a “front of filter” drainage effect. Therefore they are ideally suited for applications where filters are exposed to constant water spray or fogging.

* Data is from the corresponding pocket filter version F 45 S as the technical key data of F 45 R cannot be ascertained due to the test configuration according to EN 779 which does not provide for measurements of such a specific design.

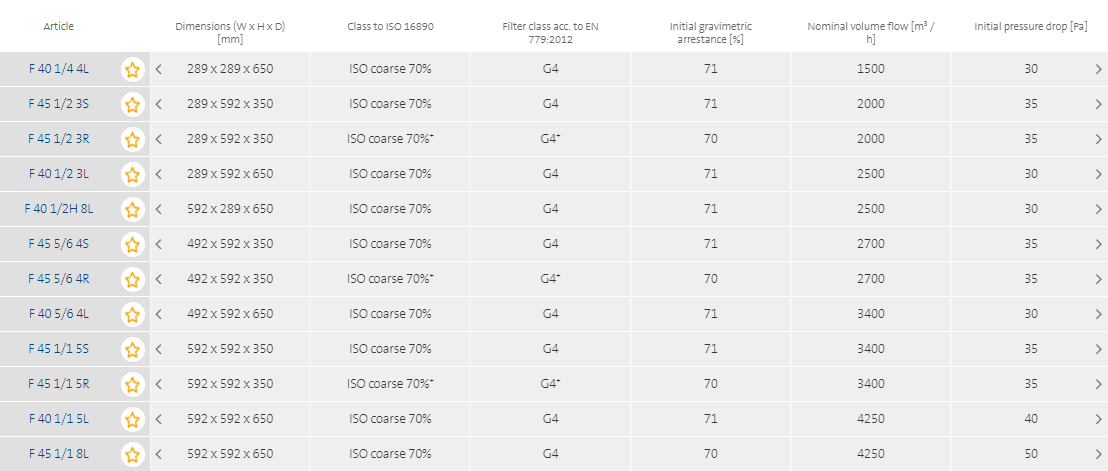

Product Variants
